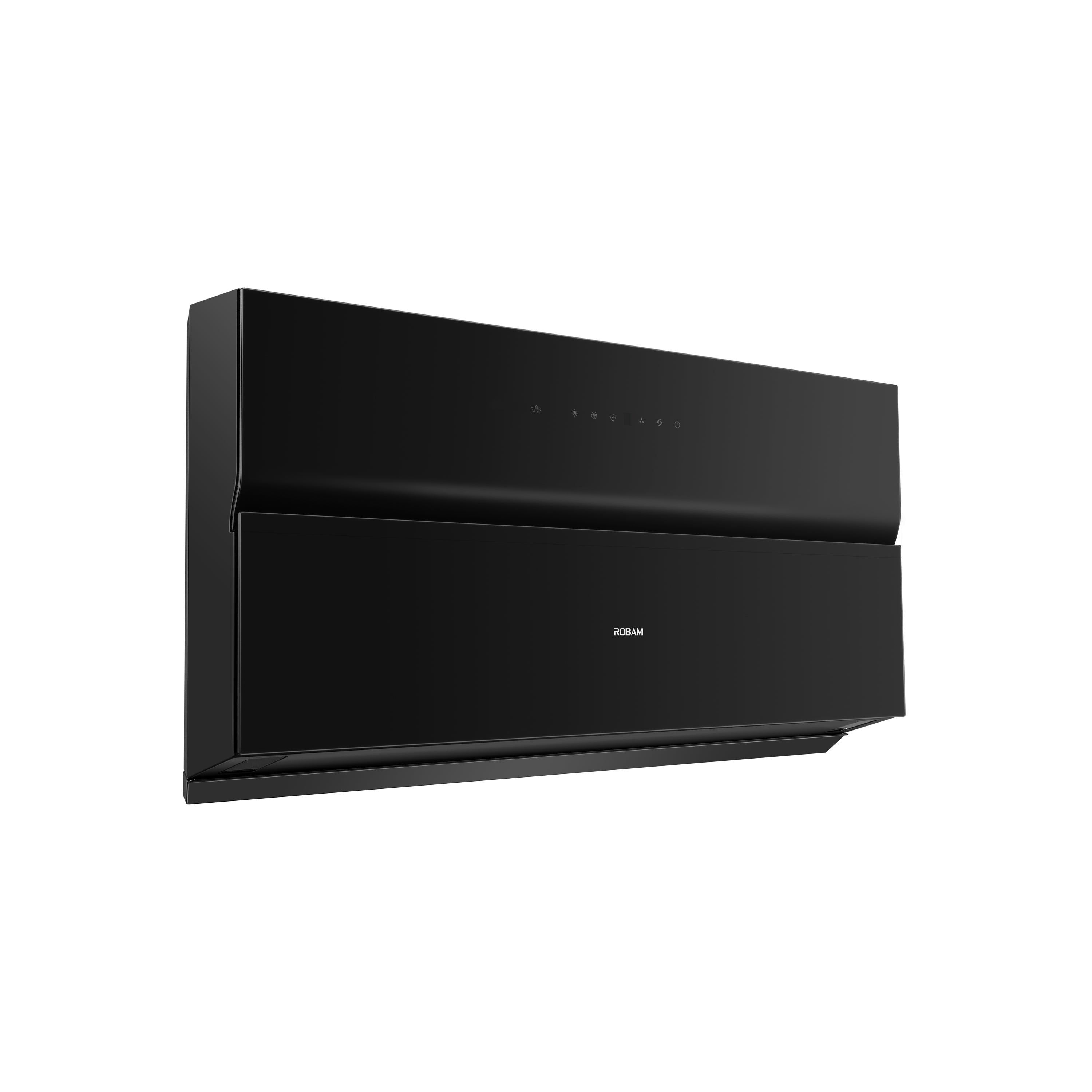

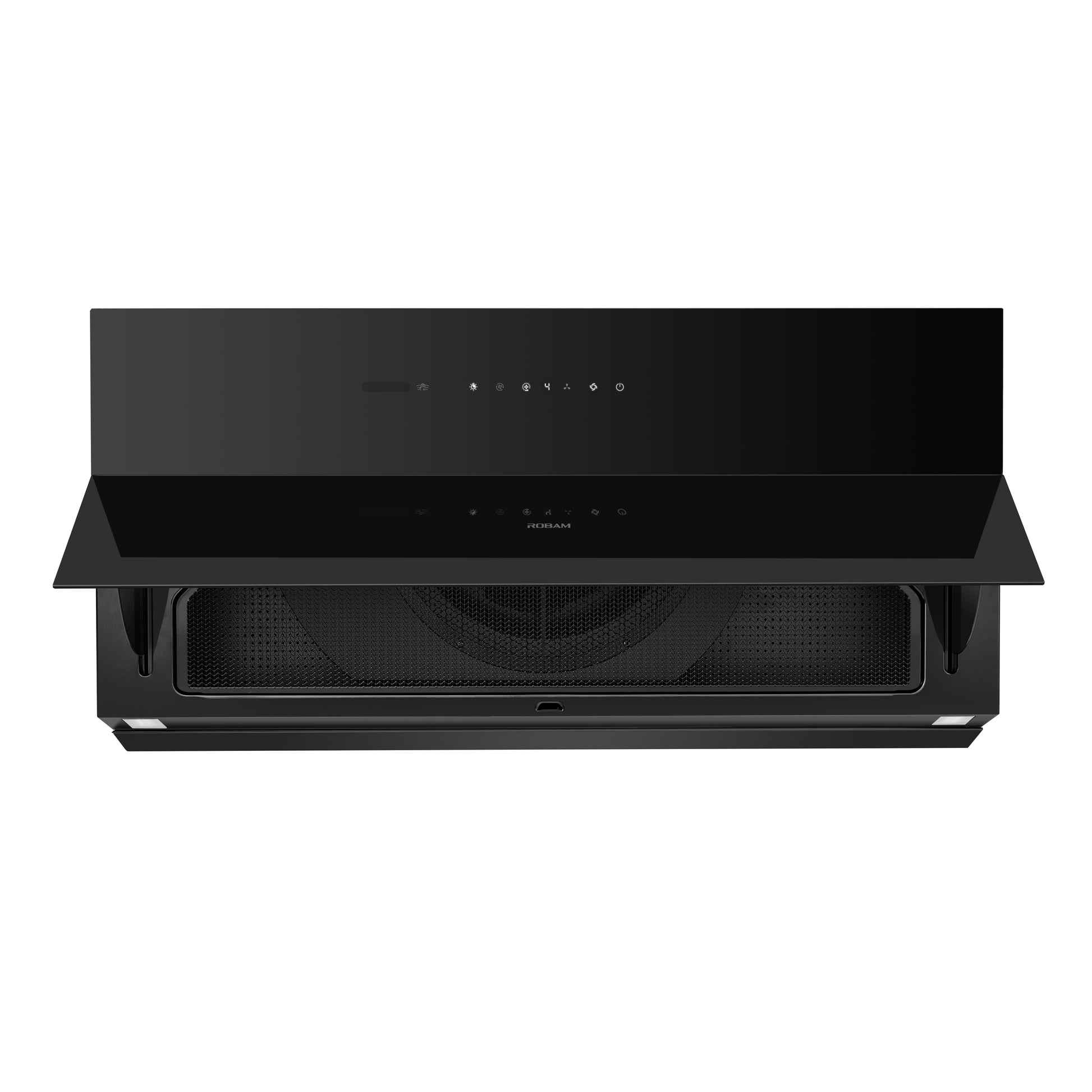

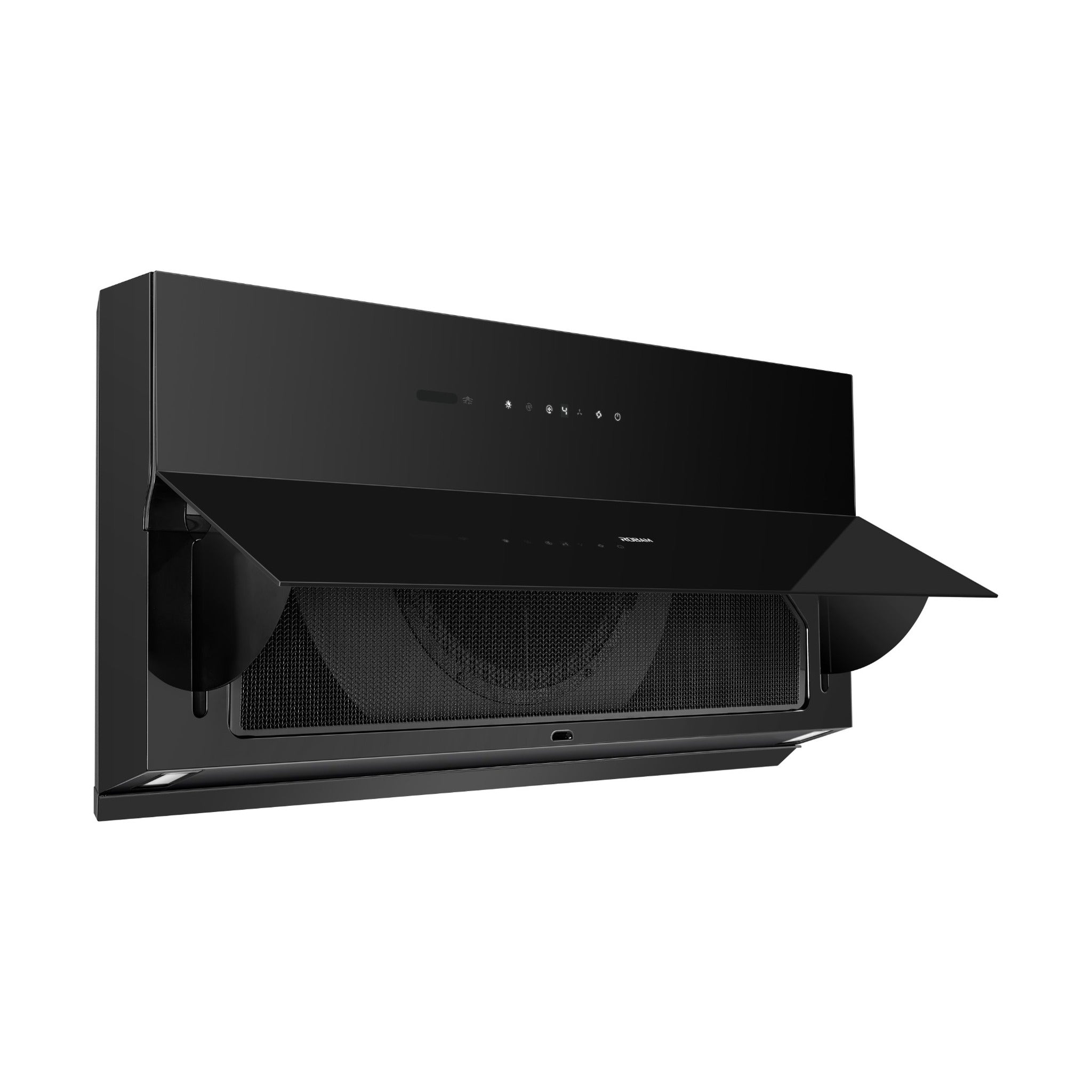

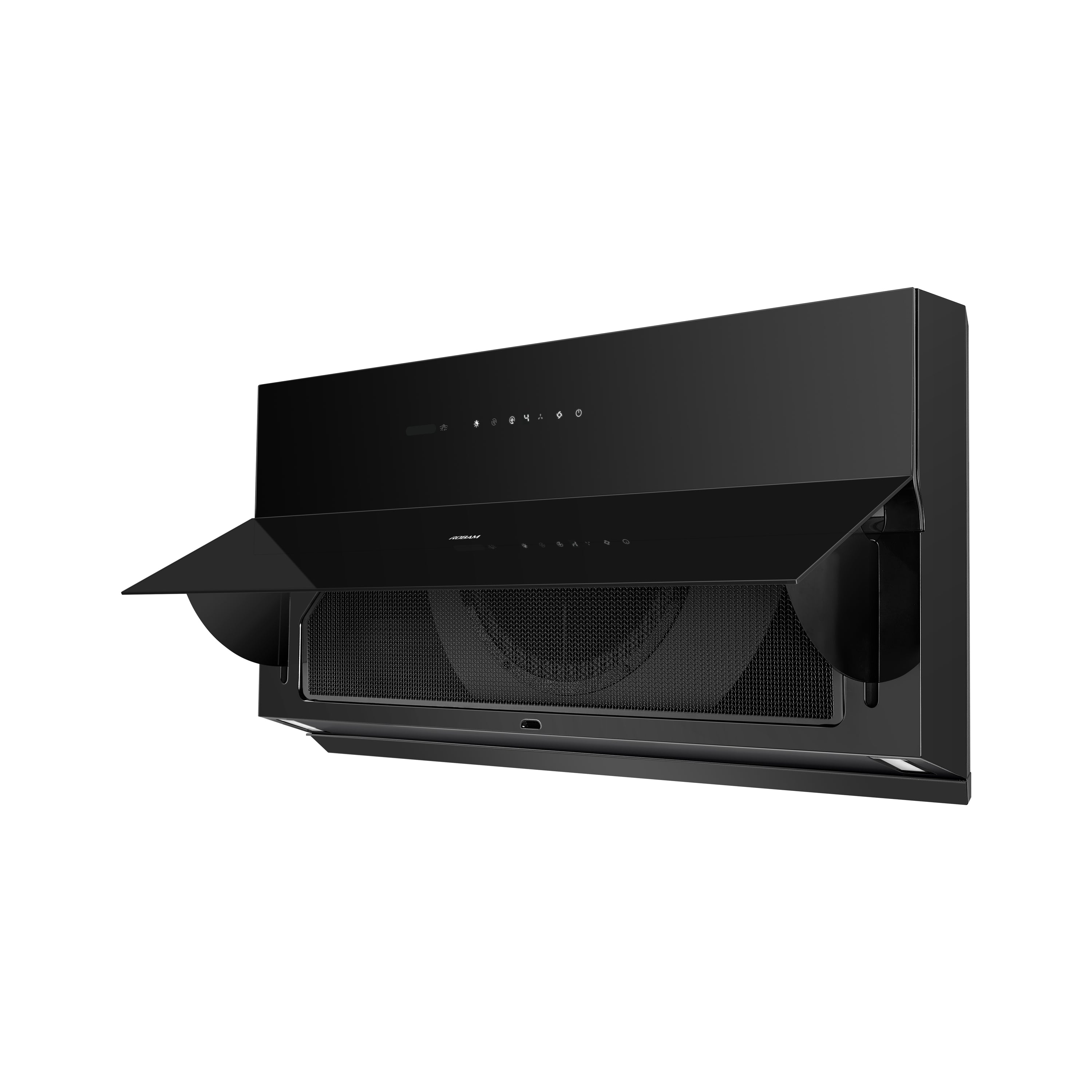

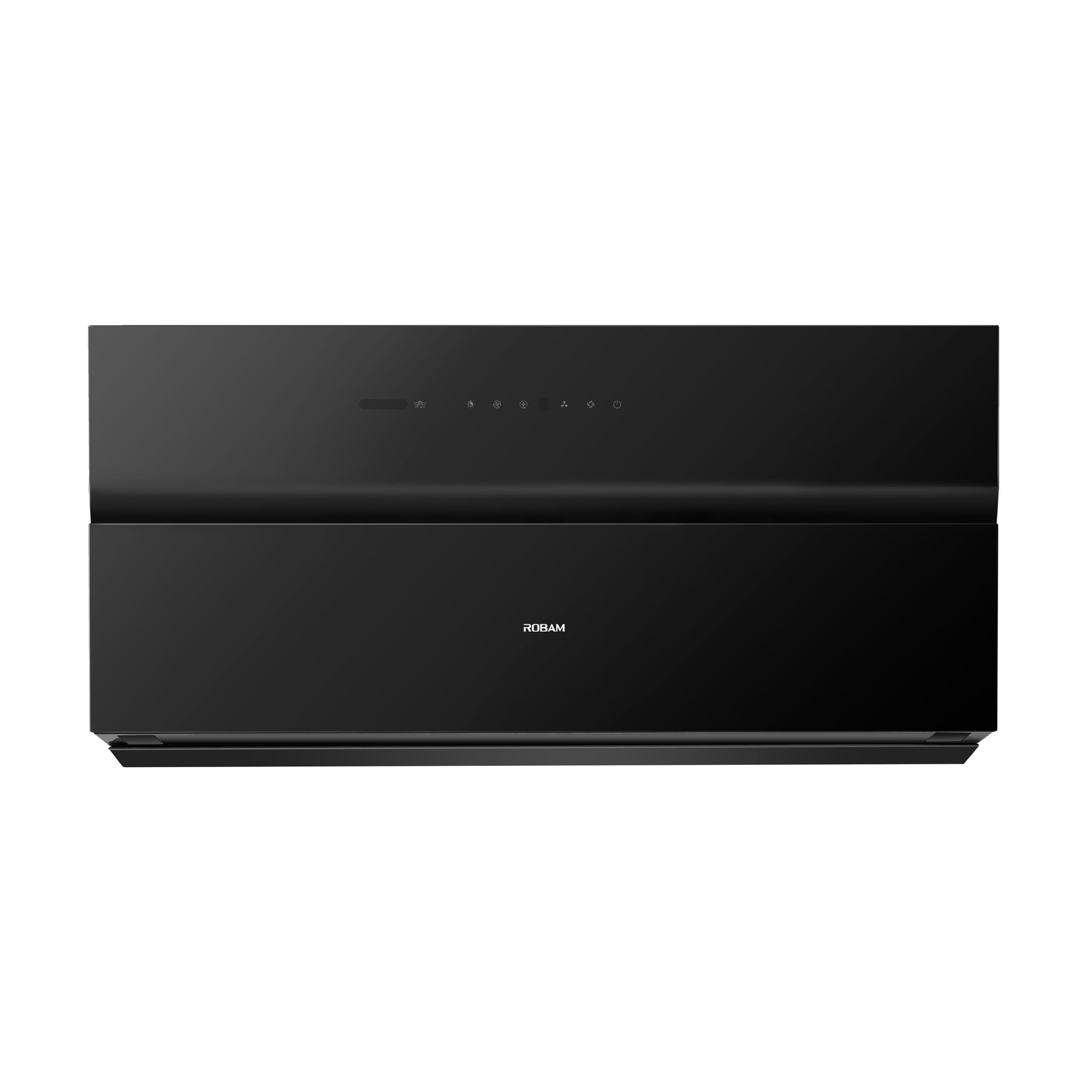

CXW-260-77H2S
CXW-260-77H2S
Couldn't load pickup availability
Features & Benefits
Features & Benefits
- 18cm ultra-slim design,release up to 90% cabinet space
- Powerful BLDC motor brings 1.4X turbo performance
- Capturing oil fumes from the source
- Auto-Adjust 9 speed control
- Waving control with AI Tech
- R-Link Sync, link with your cooktop
- FreshAir system
- Switchable lighting between cold and warm
Specifications
Specifications
Performance
IEC Airflow (m³/h): 1890
Unrestricted Airflow (m³/h): 3390
Noise (High) dB(A): 49
Noise (Low) dB(A): 45
Max Static Pressure (Pa): 1200
Appearance
Mounting type: Under Cabinet / Wall Mount
Duct type: Round
Venting type: Ducted
Features & Functions
Motor: Brushless
Speeds Selections: 9
Auto-adjust Speed: Y
Fully Auto Function: /
Turbo Function: Y
Light: 2W x 2 LED
Light Change: Y
Delay Shut Off: Y
Air Exchange: Y
Filter Clean Reminder: N
Wave Control: Gen 3
Filter Type: Mesh

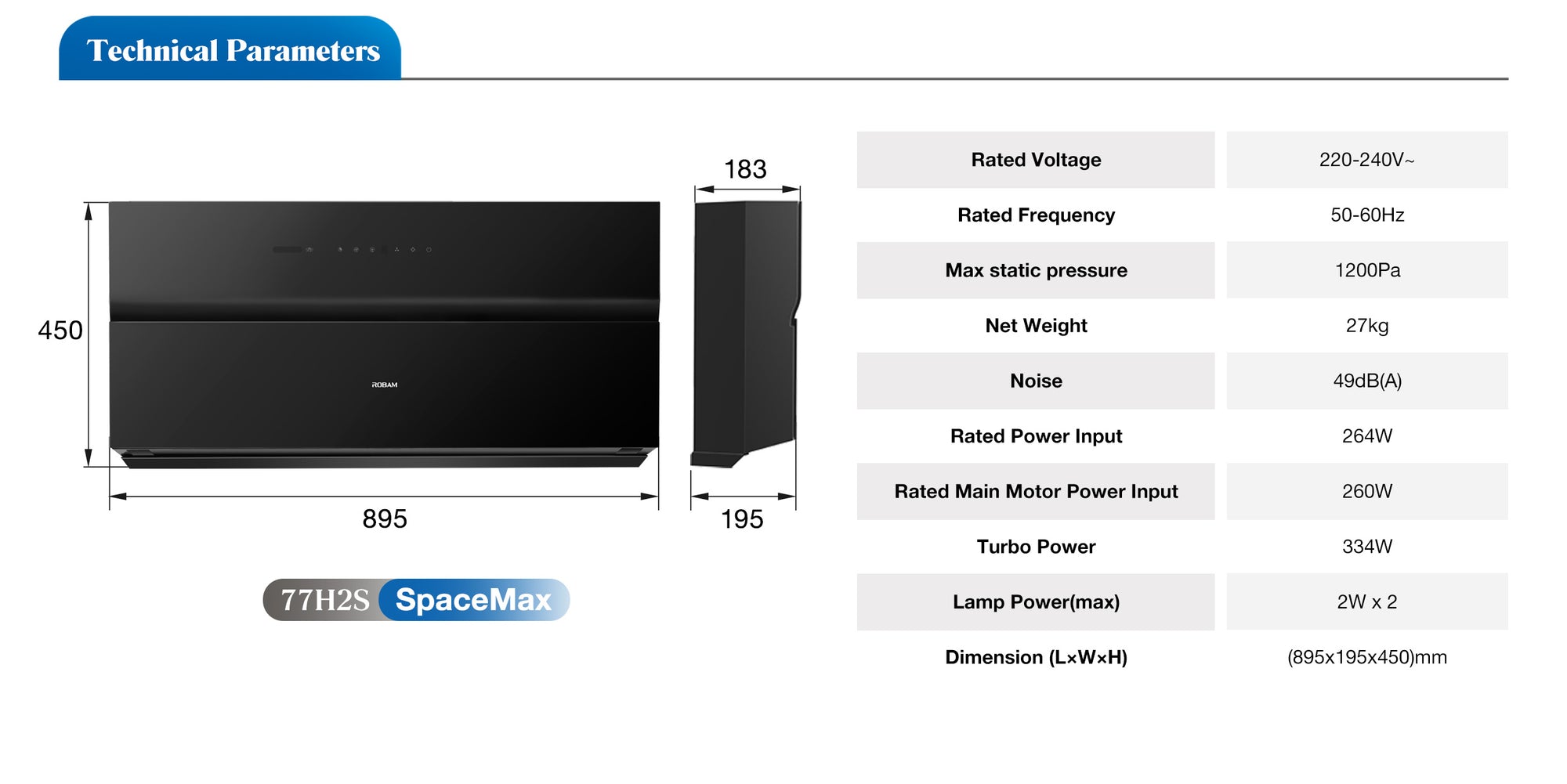

Technical Specifications
Volts: 220-240
Hertz: 50-60
Dimensions & Weight
Product Size (W x D x H)(mm): 895×195×450
Product Weight (kg): 27
Extended Cover (mm): /
Manuals & Guides
Manuals & Guides
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

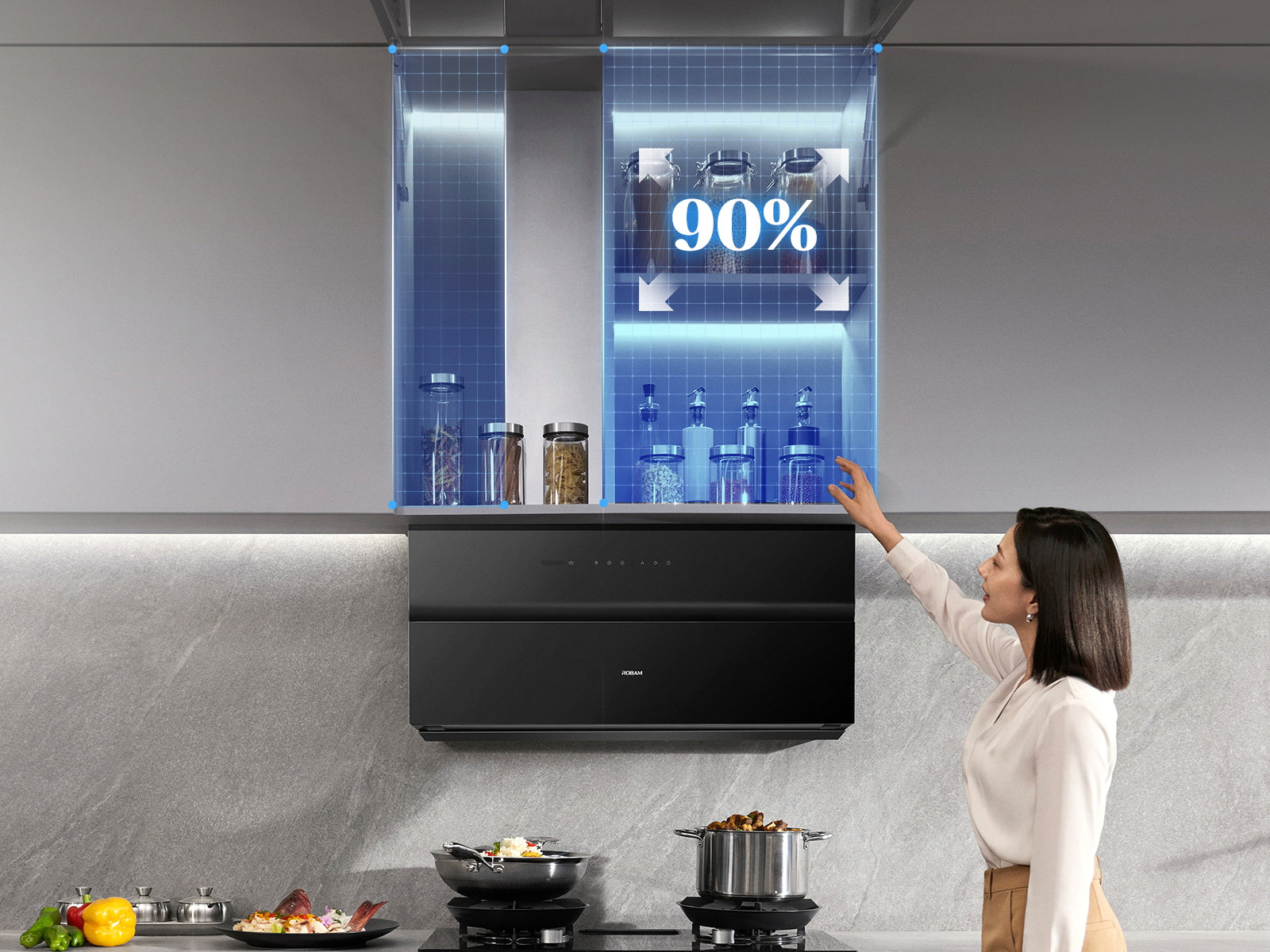

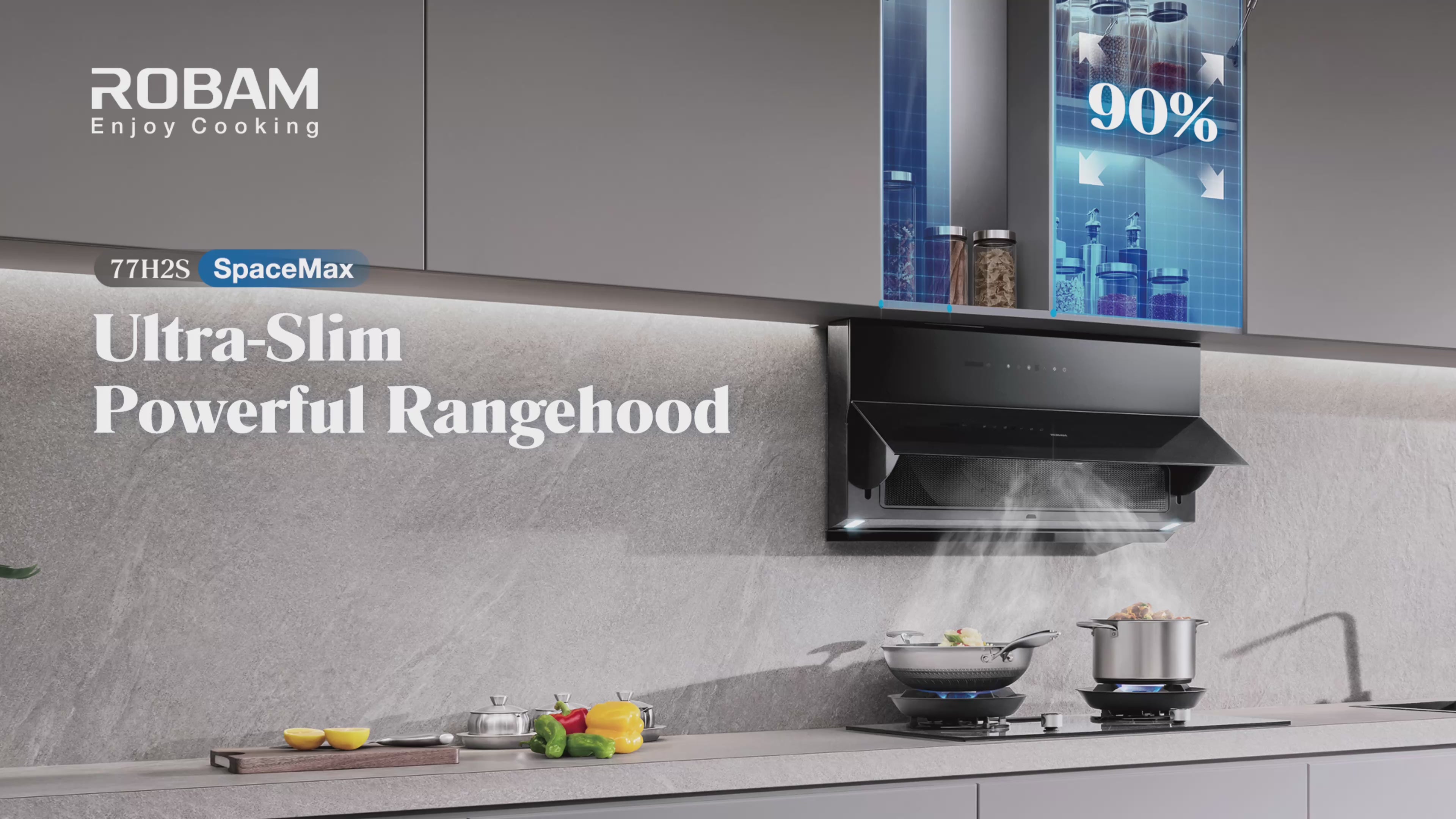

More Space, More Possibilities
More Space, More Possibilities
We have revolutionized kitchen freedom with our Ultra-Slim rangehood. Our innovative air duct delivers robust suction power whilefreeing up 90%* of your upper cabinet space-creating more roomto store essential kitchen items.
*Reclaim 90% More Upper Cabinet Space:Standard upper cabinet dimensions: 900 X350 X900mm.Calculated with our square air duct installed (197 X137 X 900mm).

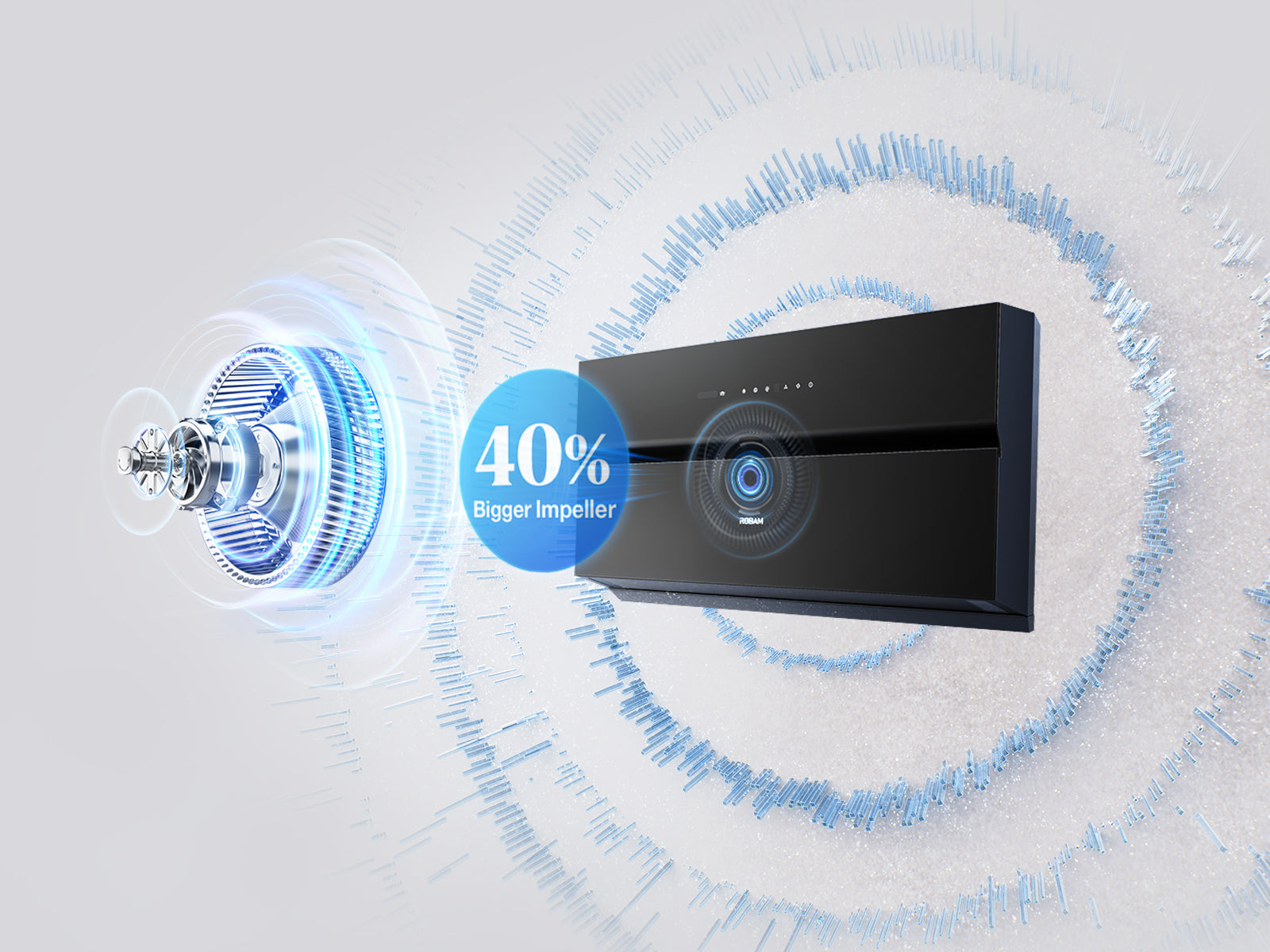

1.4X Turbo ForceCreate Supreme Suction Power
Engineered for maximum efficiency, it features an impeller 40% larger in diameter than conventional models-delivering unparalleled suction power and significantly improving smoke extraction.

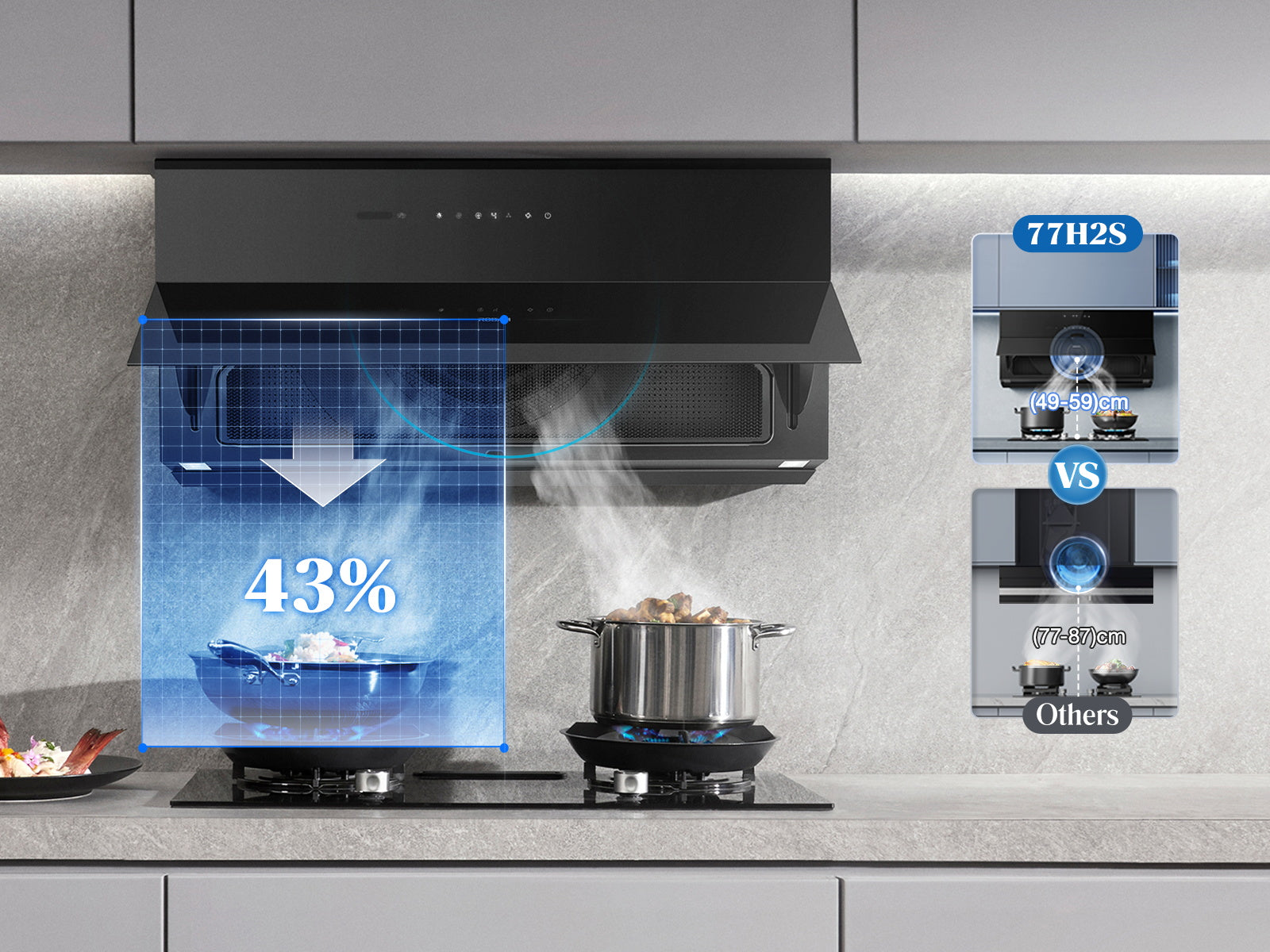

Closer to Cooking FumesExhaust Fumes Swiftly
By positioning the motor and duct below, and lowering thepower source, we effectively reduce the distance to the fumesource by 43%, ensuring the complete elimination of anyescape of oil fumes.

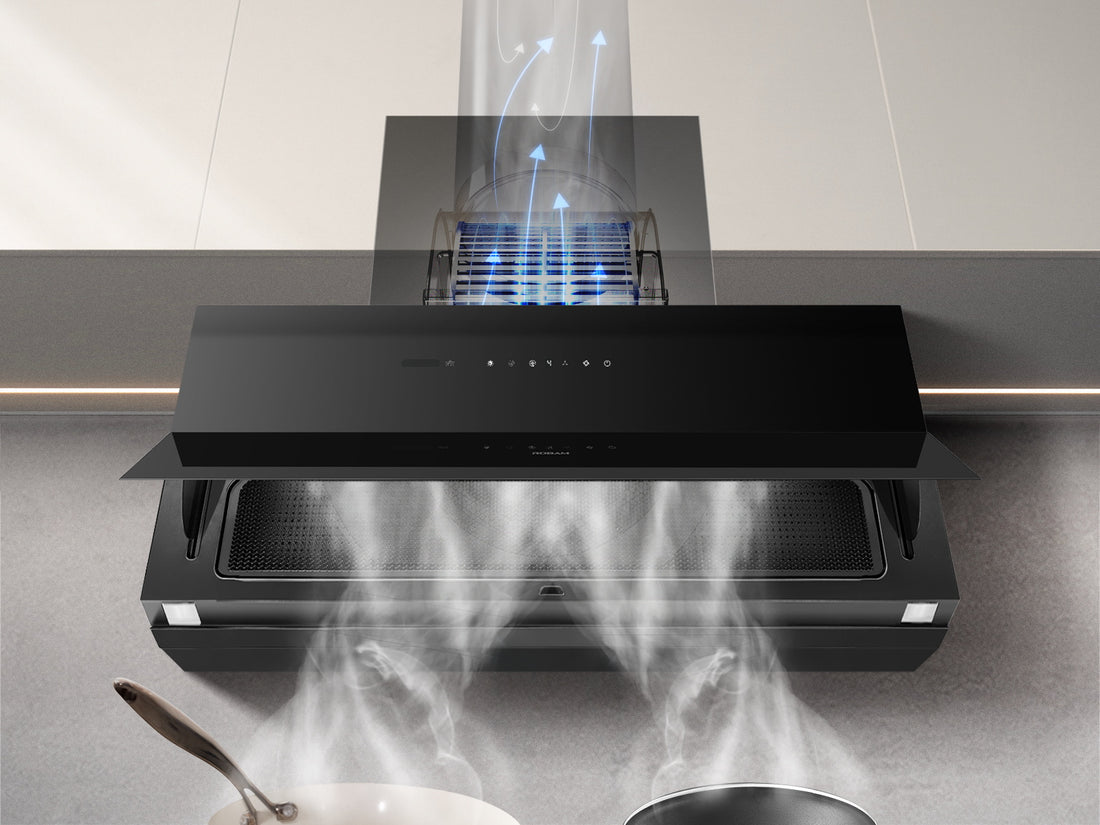

Auto-Adjust Speed Control
Experience the pinnacle of efficiency with ourintelligent sensing chip. Seamlessly adjustingsuction power in real-time to match duct airresistance, it guarantees consistent, top-tierperformance with maximum airflow andpressure.

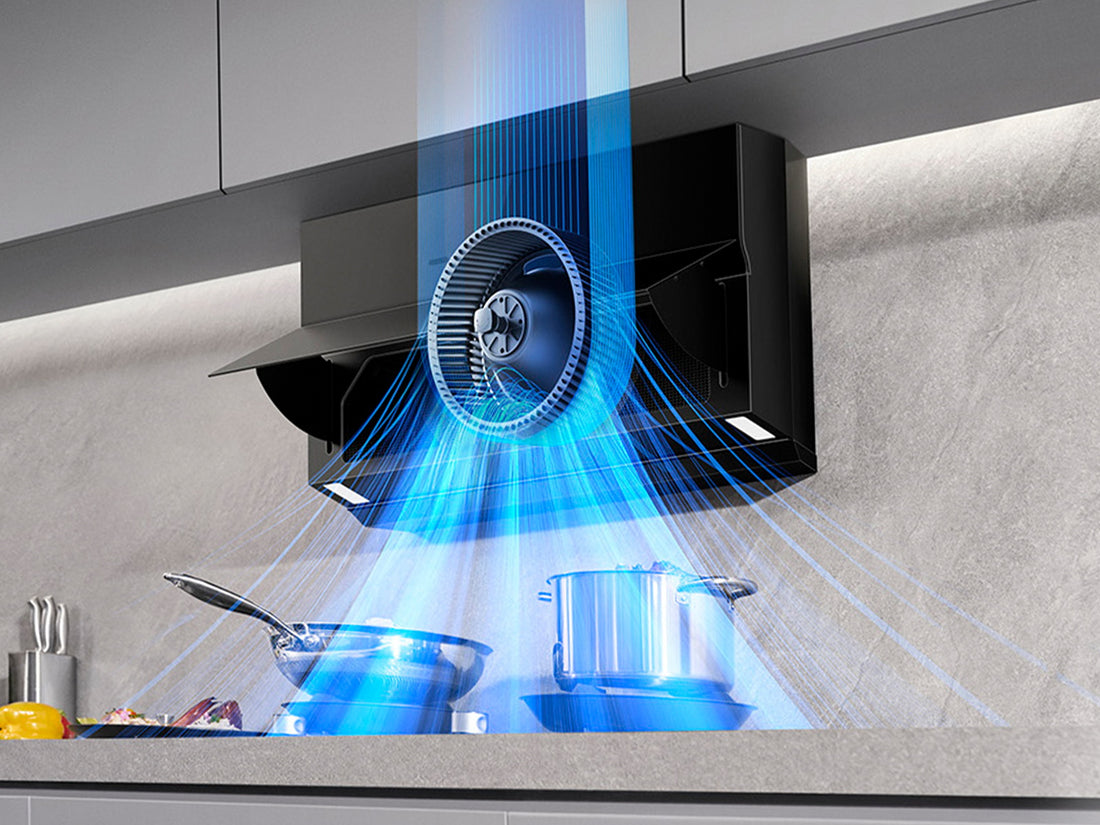

Exhaust Fumes in a Second
Equipped with a BLDC motor, the range hoodautomatically adjusts motor speed based onexternal resistance, delivering up to 1200Pa ofpowerful static wind pressure for stronger andquicker exhaust.

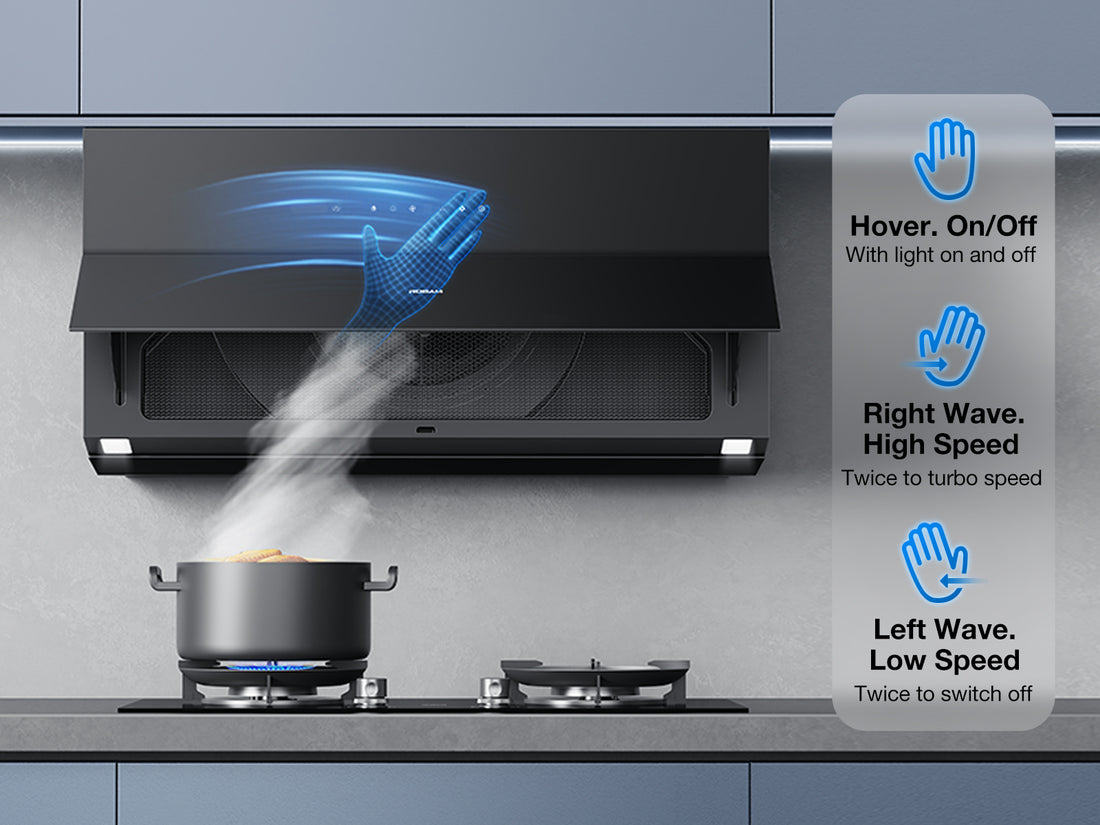

Al Gesture Control
With intelligent gesture recognition, you cancontrol the range hood effortlessly withouttouching it. Wave your hand left or right toswitch fan speeds, making it smarter and moreconvenient.

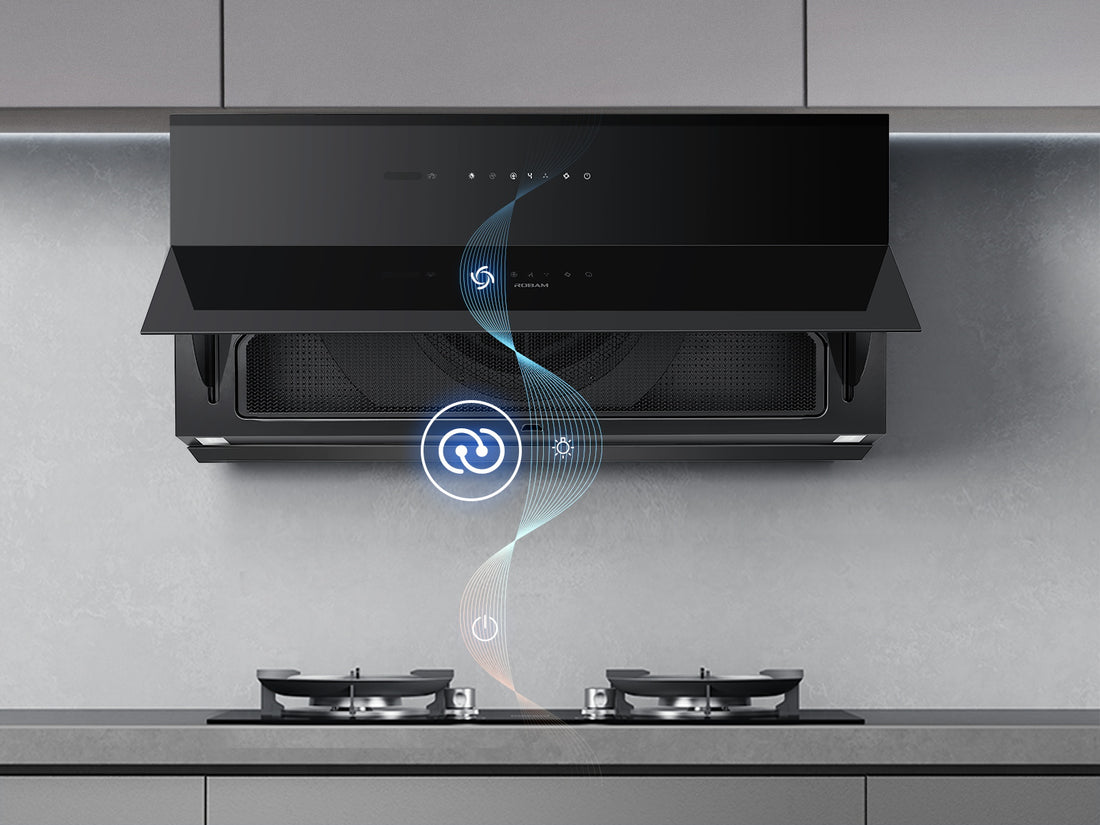

R-Link Sync
Experience seamless kitchen efficiency withrangehood and hob linkage technology. Therangehood automatically turns on and off withthe hob, ensuring optimal smoke and odorextraction precisely when you need it.
Note: This feature requires a ROBAM hob with linkagefunction.

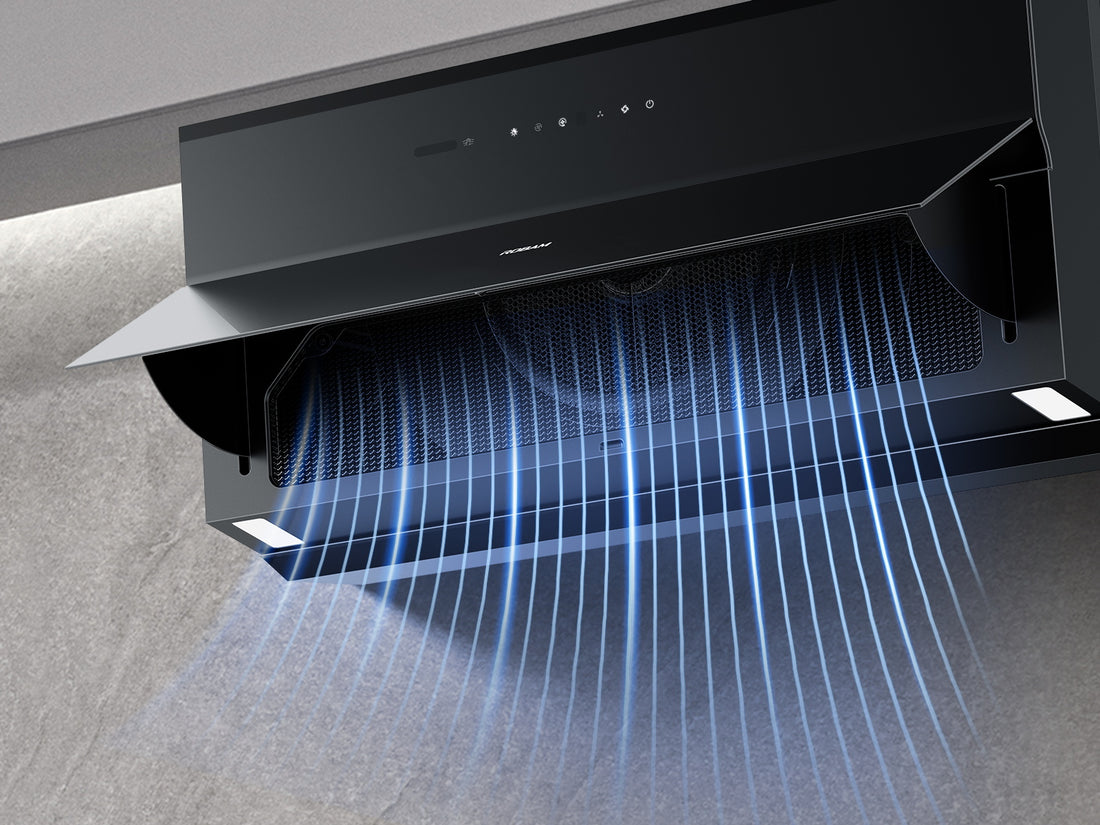

Fresh Air System
It providing ventilation and air exchangeevery 24 hours. Ensuring optimal air qualityeven when you're away for extended periods.Effectively reducing odors and airbornepollutants while retaining ambient temperaturefor energy efficiency.

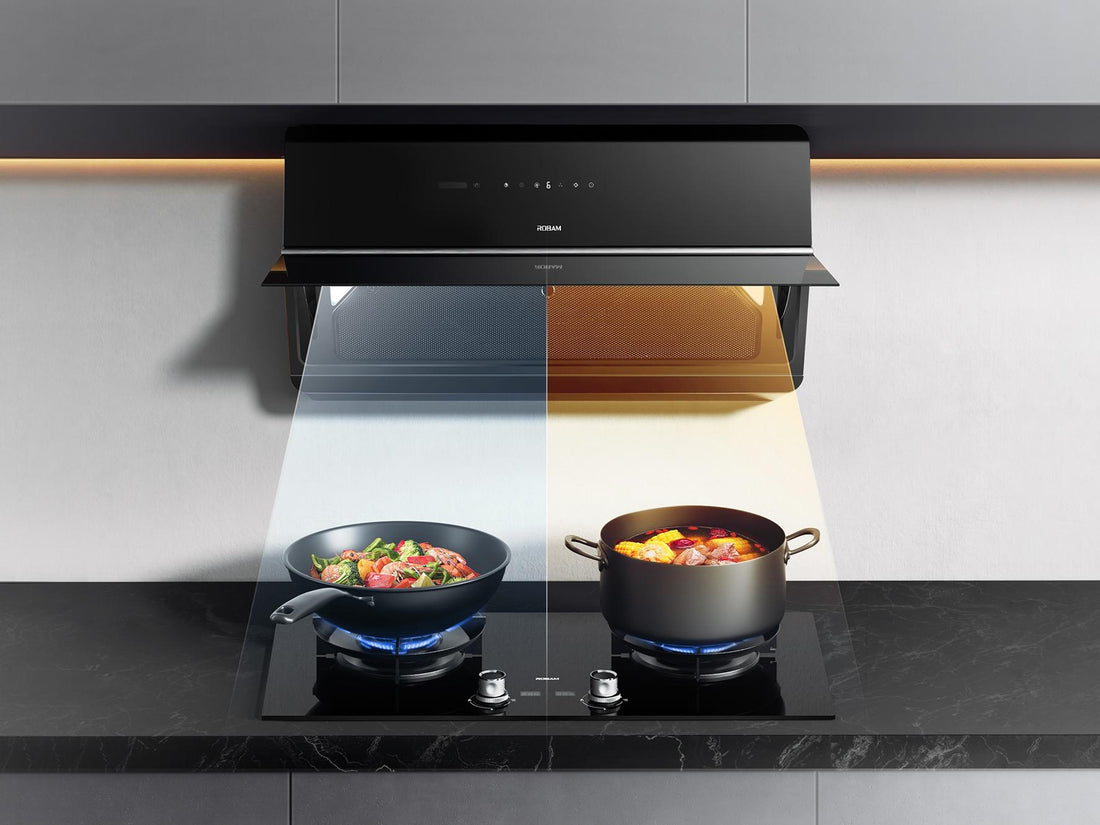

Switchable Warm and Cool Lighting
Seamlessly switch between warm and coollighting to create the ideal ambiance in yourkitchen. Whether you're preparing a gourmetmeal or whipping up a quick snack, our rangehood lighting ensures you have the perfectillumination at your fingertips.
